TX-W 1A00 - 6D00

High efficiency water cooled chiller 246 - 4549 kW

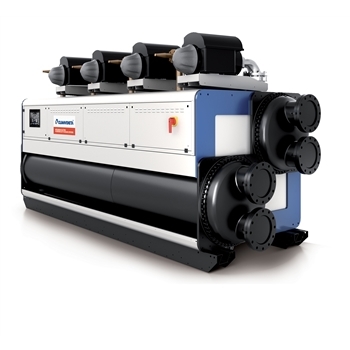

Indoor unit for the production of chilled water featuring centrifugal oil-free compressors, with R134a, electronic regulation valve, shell and tube condenser and shell and tube flooded evaporator. Base and supporting structure and panels are made of galvanized epoxy powder coated steel with increased thickness. Flexible and reliable unit; it easily adapts itself to different thermal load conditions thanks to the precise thermoregulation together with the use of inverter technology. The compressor is radically innovative: magnetic bearings and digital rotor speed control allow partial load efficiency levels to be reached that were hither to impossible.

EUROPE

CE

50 Hz

Topic overview

Product features
Technical data
Produkt-Informationen
Downloads

Product features

Features

NO COMPROMISE

Variety of compressor combinations (up to 6 compressors on the same unit), plus the flexibility to choose the heat exchangers that can satisfy each specific installation and design requirements: the highest full load efficiency, the best initial investment, an unrivaled seasonal efficiency, an operating range suitable for applications in systems operating at high or low condensation (dry coolers or cooling towers).

VERY HIGH EFFICIENCY

Very high efficiency at full and partial loads, at top market levels, thanks to the technological solutions adopted: large capacity modulation and expanded exchanger, offering minimal running costs of the unit in real working conditions.

FLEXIBLE COMPOSITION

Choice between horizontal or diagonal arrangement of the heat exchangers, with dimensions that favor the compact overall dimensions in height or footprint, water connections to the evaporator and condenser that can be deployed on the right or left, to fit any application.

ADAPTABILITY

Can adapt to the building’s heating request thanks to the continuous capacity regulation, assured by the control’s sophisticated logic.

LOW INRUSH CURRENTS

Reduced breakaway starting currents thanks to the revolutionary centrifugal compressor.

EXTREMELY SILENT OPERATION

Extremely silent operation in line with the best on the market, and highly reduced vibrations

AHRI CERTIFICATION

Certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P). Certified units may be found in the AHRI Directory at www.ahridirectory.org

Technical data

Produkt-Informationen

- - Basic function

Integral acoustical enclosure (base or plus)
VPF (Variable Primary Flow) system
Set-up for remote connectivity with ModBus/Echelon protocol cards
Several devices for condensation control.
Filter kit for conformity to EN 61000-6-3 (residential environments)

W3000TE
