Product overview

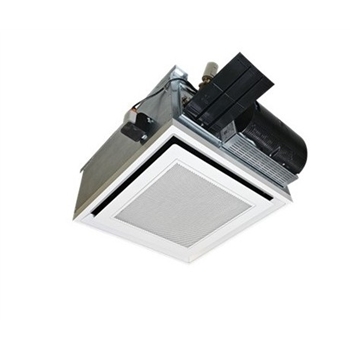

i-CMW 62 - 94
The i-CMW cassette unit is designed to provide a more efficient and quieter air conditioning solution.The EC fan, controlled by an inverter, allows continuous modulation of both airflow and capacity, enabling the unit to easily adapt to any variation in thermal load.
The units are available for installation in 2-pipe and 4-pipe systems and come in two sizes to meet a wide range of installation requirements.The new i-CMW cassette features an elegant design (in RAL 9010 white) to suit modern residential and commercial installation needs. Airflow directions can be easily configured during installation.The classic 4-way distribution is ideal for managing larger spaces with uniform air distribution.
The 2-way airflow option is well-suited for corridor or gallery-type spaces. In any case, the Coanda effect ensures maximum comfort for occupants
.
EUROPE
CE
50 Hz
Topic overview
Product features
Features- 4-way supply and return metal grille in white RAL 9010
- Casing made of galvanized steel with internal thermal insulation in polyethylene foam.
- The fan assembly, which is mounted on anti-vibrating supports, is particularly silent and efficient. The single radial fan is connected to a three phase permanent magnet brushless electronic motor that is controlled by an inverter. The air flow can be varied continuously.
- Coil made of copper tubes with bonded aluminium fins for maximum heat transfer efficiency.
- Control Panel made of an external box with the control electronic card with an easily accessible terminal board.
- The units can be supplied with on-board SmarT PCB power board to manage groups of units in Master/Slave configuration and for integration in supervision systems.
- 2 and 4 pipe system units can be supplied with integrated electric heater.
- The units can be equipped with fresh air intake and a remote air diffuser can be connected to the unit.
Produkt-Informationen
Produkt-Informationen- i-CMW 2T - 2-pipe unit
- i-CMW 4T - 4-pipe unit
- SmarT PCB board for SmarT D control
- Integrated electric heater
- Ceiling frame
- Two or three way ON/OFF valves, with thermostatic actuator
- Shutters
- Fresh air connection
ATW-EC Wall Control
User interface for selection of functioning mode, fan speed and temperature set. Control of main and additional coil valve unit. (summer/winter 2 and 4 pipes installation). Management of traditional ON/OFF valve unit. Air and water temperature probe. Multifunction digital input configurable by user. Configuration dip switch.
